Here we introduce the M-Pin client-server protocol, which features two-factor client authentication as an alternative to Username/Password. Despite the mathematical complexity of the protocol we demonstrate that an M-Pin client can be implemented in an environment with limited computational capability.
1 Executive Summary
The M-Pin protocol is intended to replace the well-known Username/Password authentication mechanism which is widely considered to be effectively broken. The main problem is the existence of a “password file” on the server, which is commonly stolen and hacked, revealing most user passwords.
The idea behind M-Pin is that each registered client is issued with a large cryptographic secret. They then prove to a server that they are in possession of this secret using a zero-knowledge proof. This removes the requirement for any information related to client secrets to be stored on the server.
Industry commentators have long advocated a multi-factor solution. The novel feature of M-Pin is that the cryptographic secret may be safely split up into any number of independent factors. Each of these factors has the same form, they are points on an elliptic curve. To recreate the original secret they are simply added together again – its as simple as that. One factor might be derived from a short 4-digit PIN. Another might be a “token” conveniently dropped into the users browser.
Classic two-factor solutions are in fact often hierarchical and two-level. A key generated from one factor is used to unlock the other. Disjoint technologies are used by each factor. Typically a password (or a biometric) might be used to unlock an authentication key stored in a file. Strictly speaking this solution is only one-factor, as it is only this authentication key that is required, and an attacker would be satisfied if they could obtain this without knowing the password. However since this is probably not possible we accept that the overall effect is two-factor authentication. Software encryption might be used as the locking mechanism, but since a brute force attack will discover the authentication key, the password must become a large hard-to-remember pass-phrase. The alternative (which achieves the same functionality as two-factor M-Pin) is to lock the authentication key into a secure hardware vault. Now a short PIN can be used to unlock it. However secure hardware is expensive and may not be supported on all devices. Another downside of this classic approach is that the extension to multi-factor authentication is not at all obvious.
A strong client-server protocol should (a) authenticate the client to the server, (b) authenticate the server to the client, and (c) should result in a negotiated encryption key with which subsequent communications can be encrypted.
The standard method of implementation uses a Username/Password mechanism to authenticate the client to the server, and the well known TLS/SSL protocol to authenticate the server to the client and to establish the encryption key. The weakest link here is the Username/Password mechanism which is widely regarded as being broken. SSL itself, to a lesser extent, has been weakened by intensive scrutiny which has revealed some exploitable vulnerabilities.
To replace Username/Password, multi-factor authentication is the most often touted solution. Of all the possible form-factors the simple ATM-like combination of a token and a PIN number is the most user-familiar and user-friendly. But until now (surprisingly) no sophisticated cryptographic protocol was available to support it, other than those that used simplistic methods derived from classic symmetric cryptography. Implementations invariably involved some kind of (potentially expensive) hardware token. Cryptographic solutions based on modern asymmetric cryptography suffered from weaknesses which allowed an attacker, in possession of some easily accessible side information, and who had captured a software token, to mathematically immediately determine the associated PIN number. Therefore they were not genuinely two-factor.
Here we describe the M-Pin technology solution which simply replaces Username/Password while continuing to leverage SSL.
An important aspect of M-Pin is the involvement of a third party, called the Trusted Authority. In classic Username/Password schemes the client registers directly with the server, who maintains an “encrypted” (in fact hashed) file of client passwords. So the server is not just responsible for day-to-day operations, it is responsible for client registration as well. Note that this is in contrast with (the much more successful) SSL protocol, which already involves a third party in the form of a certificate issuing authority (CA), such as Verisign. The CA registers the server by issuing on its behalf a public certificate. This certificate based technology is known as the Public Key Infrastructure (PKI).
So with the likes of SSL, server registration is quite separate from day-to-day server operation. With M-Pin we do something similar for the client – we separate out the day-to-day client-server functionality from client registration, which is now handled by a Trusted Authority (TA). So a TA is to M-Pin what a CA is to SSL/PKI. One of the big benefits of this approach is that a break-in to the server does not cause nearly as much damage, as long as the TA remains inviolate. Just as hacking a single SSL server is not nearly as bad as hacking Verisign. In particular, using M-Pin, no client secrets, or values derived from client secrets, are stored on the server.
3 Pairing-Based Cryptography
To realise our solution we will be exploiting the relatively new (but rapidly maturing) science of pairing-based cryptography (PBC). Pairing-Based Crypto provides an extra structure which often allows solutions to complex problems that proved intractable to the standard mathematics of Public-Key Cryptography. The poster child for PBC was Identity-Based Encryption, whereby the identity of a client became their public key. The idea was around for a long time, but traditional cryptographic primitives failed to produce a solution. However with the introduction of PBC solutions were found almost immediately .
A Type-3 pairing  is a mapping . The groups , and are all of the same prime order . A pairing works on a special pairing-friendly elliptic curve , . For a BN curve are points on the curve over the base field , are points on the sextic twist of the curve over the quadratic extension field , and are elements in the cyclotomic subgroup embedded in the finite extension field . The pairing itself is written as a function with two inputs , where , and . A BN pairing-friendly curve is a perfect fit for security at the AES-128 level, and so we will assume its use here. The most important property of the pairing is its bilinearity: To create a client-server protocol, it is important that client and server secrets should be kept distinct. A simple way to exploit the structure of a Type-3 pairing is to put client secrets in and the server secret in . For a Type-3 pairing there is assumed to be no computable isomorphism between these groups, even though both are of the same order.
4 Of Keys and Cucumbers
One of the novel aspects of pairing-based cryptography is that deployed secrets are commonly represented as points on an elliptic curve, which are the result of multiplying a known point by a master secret . So for example a secret might be of the form , where is known. There are a number of interesting things we can do with secrets that have this form, that are not possible with the secrets that arise when using other cryptographic technologies. For example they can be split into two, into and where and . In fact they can be just as easily split into multiple parts, just like chopping up a cucumber. We can also add extra components to create a secret of the form . It
is the flexibility that arises from this form of the secret that allows us to
introduce the idea of chopping off a tiny sliver of the secret to support a
PIN number. It also facilitates the concept of “time permits” as described
The Trusted Authority will be in possession of a master secret
, a random element of
. A client secret is of
the form , where ID is
the client identity and
a hash function which maps to a point on
. Here we follow  and
assume that is modelled
as a random oracle where
where is random and
is a fixed generator
of . The server will be
issued with , where
is a fixed generator of
. Note that this will be
the only multiple of
ever provided by the TA. Servers will always be associated with their own unique
Note that the TA functionality can be trivially distributed using a secret sharing
scheme, to remove from the overall system a single point of failure. In the
simplest possible case there may be two Distributed Trusted Authorities (DTA),
each of which independently maintains their own share of the master key. So
, and each DTA issues
a part-client secret
which the client adds together to form their full secret. Now even if one DTA is
compromised, the client secret is still safe.
An important idea is that a PIN number
be securely extracted by the client from their secret, to create the token
. Our two factors of authentication are then this memorised PIN and the
token. To be explicit, for an individual Alice whose identity hashes to a point
her full secret as issued by the TA is the point
. This is split into the
token , and the chosen
PIN number . The token
is created by calculating
and subtracting it from .
The full secret can be reconstructed from its two components by Alice as
This protocol builds on a long history of Identity-Based identification (IBI) protocols,
that originate with the seminal work of Fiat and Shamir . The basic idea is
for a Prover to identify itself using an identity-related secret issued by a
Trusted Authority, while revealing nothing of that secret to the Verifier. This is
often called a zero-knowledge proof, as proof of possession of the secret is
established while revealing nothing of the secret itself. It is important to
emphasise that an identification protocol results only in the Verifier (in this
case the server) either accepting or rejecting the Prover (in this case the
IBI protocols were studied in depth by Bellare et al.  as part of a larger
framework whereby many standard identification (SI) methods could be “surfaced” as
IBI schemes, or indeed as full Identity Based Signature (IBS) schemes. By “pushing”
some proposed (but unproven) IBS schemes down to their underlying SI description,
there were able to resurface them, but this time with full security proofs.
They considered some pairing-based schemes, the best of which appears to
be that which first appeared as an IBS scheme proposed independently in
more-or-less the same idea. All of this research owes a debt to the original
(non-identity based) short signature scheme of Boneh, Lynn and Shacham
Note that in standard IBI protocols the Verifier has no secrets. The Prover is
simply trying to prove that they are entitled to their claimed identity, to anyone that
is interested. Here however only the unique Verifier in possession of the secret
is in a
position to carry out the verification. We need this restriction, as otherwise a corrupt
Verifier could be used as an Oracle against which to test PIN guesses by someone
who had stolen the associated token. Therefore we assume that the server
which is running SSL or its equivalent, also takes responsibility for protecting
only other change we make is to split client secrets into token and PIN as described
To place the server secret
in context, observe that in standard PKI everyone has their own identity and an
independent public/private key pair. So there is a public key for every individual,
bound to their identity via a certificate issued by a CA. On the other hand in
ID-based cryptography everyone has an identity, and a private key derived from that
identity by a TA. And there is just one public key, the TA’s public key. This TA
public key is used in various protocol-dependent contexts. In the M-Pin protocol the
TA public key becomes the server secret. This means that only the server can
authenticate one of its own clients. But this is a perfectly natural requirement in the

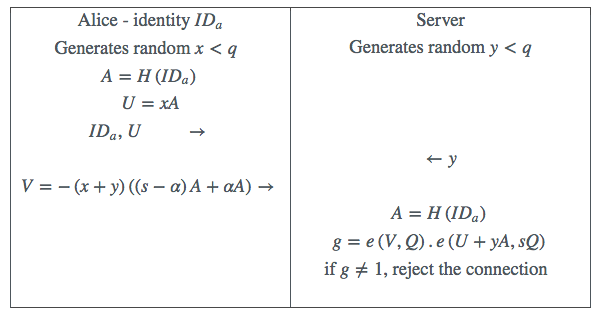

The basic M-Pin protocol is shown in Table 1. Observe that
on the client side all of the computation is in the simpler group
the server side the product of two pairings can be calculated using standard
multi-pairing methods , and will cost much less than two separate pairing
computations. The correctness of the protocol can be quickly established using the
At the end of a protocol run the client still does not know whether or not they have
succeeded. This is important as we now need to take action to handle unsuccessful
connections appropriately. In a real implementation this responsibility might be
passed off to another non-cryptographic process, which is informed by the available
What outputs should a protocol like M-Pin return after completion? For
Username/Password the outcome is basically to either allow access or refuse it, but
also some simple mechanism in place to block on-line password guessing
attacks. Our response can at a minimum be similar to this, but possibly more
In the event of a successful M-Pin outcome, there is not much more to be done.
The client must have been registered correctly with the Trusted Authority, and
therefore has been issued with a valid token and has input a valid PIN, associated
with their claimed identity. In the event of protocol failure at first glance there
appears to be relatively little for the server to work with to formulate an
appropriate response. But for a two-factor authentication scheme like M-Pin
there is at a minimum a vital requirement for the server to implement a
3-strikes-and-you-are-out strategy to prevent an attacker who has captured the
token from trying all possible PINs until they hit upon the right one. The
server does not necessarily even have a list of registered users – it would be
natural that such a list should be maintained and managed by the Trusted
It may help the server to decide on an appropriate response if (a) they knew if the
failing client had a valid token, and (b) if they knew the extent of the error
in the entered PIN. In fact there is a simple way to derive from a failed
protocol run the extent of the PIN error – and if this is outside of the range of
valid PINs, then this implies that the “client” does not in fact have a valid
Observe that the M-Pin protocol depends on both the client
and the server having the same value of the master secret
in their calculations. If a client enters an incorrect PIN, it is as if they have instead used
is the extent of their error. The server can then search for
by iterating through
all the possibilities for
on its side, until the protocol outcome is correct. By exploiting the bilinearity of the
pairing, this can be done in an obvious way requiring only one multiplication in
However we can do even better. If the final step of the protocol results in a value of
, then in
fact . To
requires the calculation of a pairing and the solution of a discrete logarithm problem in
appropriate algorithm is the method of Pollard’s Kangaroos . This is a “square root”
algorithm, which means that for a 4-digit PIN only a few hundred multiplications in
will be required
to find ,
which is completely practical.
In the case where the extent of the PIN error can be determined by the server
(and this potentially applies to any two-factor authentication scheme, but in
particular to the protocols suggested here), a more intelligent response is
possible rather than the classic and simplistic “3-strikes-and-you-are-out”
A server might attempt to intelligently distinguish between a bad entity who has
captured the token and is trying to find the PIN by trying all possible combinations,
and the good entity who has either mistyped their PIN, or inadvertently typed in the
wrong PIN. One simple way to exploit knowledge of PIN error is to not punish again
a user who enters the same wrong PIN more than once. Note that it is of no value
to a bad entity to guess the same PIN twice, so nothing is lost by doing
In the case of a mistyped PIN, the error will typically be in only one digit. Again
this can be detected by the server from the PIN error. Therefore we suggest an
example of a more elaborate scoring mechanism. Here a user would only be locked out
if they reach a score of more than 10. A completely wrong PIN scores 4, the same
wrong PIN entered again scores 0, a PIN out by just 1 digit scores 2, and a PIN out
by just 2 digits scores 3. In this way a genuine good entity will struggle to
reach a score of 10, whereas a bad entity will typically get there after just 3
Note that other side-information will be available to the server which can be
folded into an intelligent decision on whether or not to lock out a particular identity.
The server will also know the IP address of the client, the browser they are
using, and the time of the attempted log-in. Combined with the identity and
PIN error this amounts to the who, what, where and when of each failed
Here we will briefly consider the cryptographic security of the proposed scheme. The
underlying IBI scheme we are using was proven secure by , in that breaking the
scheme is shown to be as difficult as the one-more Computational Diffie-Hellman
problem. They considered the protocol in the context of a Type-1 pairing (for which
can also be considered as a Type-3 pairing in which there exists a computable isomorphism
The problem of transferring a security proof from a Type-1 to a Type-3
pairing was considered by Smart and Vercauteren . Their simplest solution
was to “relativise” the security proof in the context of an Oracle which was
made available to an attacker and which implemented the isomorphism. The
fact that such an isomorphism is not known, evidently does not weaken the
Our next concern is that an attacker who captures a token should not be able to
determine the associated PIN number without the willing participation of the server.
A particularly powerful attacker would be one who was himself a client of the server,
or who was able to recruit a coalition of insiders willing to provide their full client
So consider an attacker who was in possession of
… and the victims token
. Would it be possible
to continually add
to the victims token and to distinguish the case when it too became equal to
This is exactly the Generalized Decisional Diffie-Hellman problem as
considered by Bao, Deng and Zhu . They proved that this reduced to
the standard DDH (Decisional Diffie-Hellman) assumption in the group
That the DDH problem is hard in
on a Type-3 pairing is known as the XDH assumption, first informally implied in ,
and made explicit in .
Finally consider an attacker who has access to the victims token and manages to
eavesdrop a run of the protocol, or perhaps succeeds via a “phishing” attack to get the
client to engage in a protocol run directly with it. Such an attacker can harvest the
the first and last values obtained from the protocol run. However
to find the PIN requires the attacker to be able to distinguish
three values without this relationship, which is again covered by the XDH
Note that the full client secret is reconstructed from the token and the PIN before it
is used in the IBI protocol. Also the server does not transmit anything to the client which
might be of use in determining a PIN – in fact it only transmits the random challenge
Consider now a successful break-in by a hacker into the server. Before considering
the implications of this, it is worth pointing out that the server secret,
(independent of the number of clients is supports), is just the single point
Therefore it would be easy to protect this secret inside of a Hardware Security
Module (HSM). However assuming that this secret is captured, this would allow the
hacker to set up a false server to whom clients could be attracted. It would also allow
the hacker to find the PIN associated with a captured token. In fact this must be true
of any two-factor authentication scheme, as knowing server secrets, a false server can
be created and PIN guesses can be tested against it. However the successful hacker is
not able to reconstruct full client secrets, and so cannot itself log onto the
genuine server and into client accounts. So the potential for mischief is greatly
We can (if we want) do better. Recall the server secret can be issued by the DTA in two
which are added to create
the full server secret ,
In fact the protocol can be completed on the server side while keeping
On the server side the part of the calculation involving the server secret is of the pairing
. for some random
. But by the magic
of bilinearity .
So for example the server could have two HSMs (each from a different manufacturer). One
would store and
the other . One
and the other .
The server process would then simply multiply these values
and continue with the protocol as normal. However knowing
for example, and
knowing , does not
reveal anything about .
That is the reverse pairing problem which is believed to be hard. So no single entity ever knows
the server secret ,
and a possible single-point-of-failure is eliminated.
The described scheme could as suggested be run under the protection of SSL on the
server side. However SSL is not the only choice here. Indeed it would be appropriate
to consider a pairing-based identity-based encryption (IBE) alternative to the PKI
based SSL, as M-Pin is itself a pairing-based and identity-based protocol. We would
suggest for consideration the IBE protocol of Sakai and Kasahara . This
protocol requires no pairing calculation on the client side, and a single pairing
on the server side. So an implementation of M-Pin already contains all of
the important building blocks for implementing IBE using the same BN
The M-Pin multi-factor authentication scheme described above can easily be converted in
a standard way to a multi-factor digital signature scheme  by replacing the random
is the message to be signed. The signature then is the tuple
and the server-side authentication step becomes the signature verification.
Note this is digital signature in the context where the verification capability
is restricted to the entity in possession of the secret verification key
the literature this is known as a “Strong Designated Verifier Signature” or SDVS .
Whereas a regular digital signature can be verified by anyone using the public key
associated with the signer, an SDVS can only be verified by the “designated
verifier”, in this case the M-Pin server equipped with its server secret. Many
methods have been proposed for SDVS, but most sacrifice non-repudiation,
as the designated verifier can forge signatures. This also means that the
designated verifier cannot convince a third party that Alice’s signature is valid,
because they may have generated it themselves. However the M-Pin SDVS
does support non-repudiation as an M-Pin server secret cannot be used to
forge Alice’s signature. If it ever becomes an issue the M-Pin server secret
can be revealed to a judge who can then be convinced that the signature is
This same idea can be exploited to convert M-Pin from a 3-pass
protocol to a 1-pass protocol. Here the Client itself derives the challenge
is a time-stamp now transmitted by the Client along with
the Server checks the accuracy of the time-stamp before completing the protocol. We
point out that this 1-pass variant is probably a better choice if M-Pin is to replace an
existing Username/Password implementation.
Time permits provide a simple alternate revocation capability. The idea is that the
server includes an explicitly described time slot in its construction of Alice’s hashed
identity. Unless Alice has a corresponding “Time permit” for the same time slot, she
cannot complete the protocol.
In the protocol above we instead calculate
on both sides of the
protocol where is a textual
description of the -th
time slot and is a hash
function distinct from .
For the protocol to work correctly Alice must be issued by the Trusted Authority with a
which gets added to her combined PIN-plus-token secret
Observe that the permit is of no use to any other party, and hence can be issued
publicly, or simply sent to Alice by email, or delivered via the server. A proof of
security for this idea in the context of Boneh and Franklin IBE can be found in

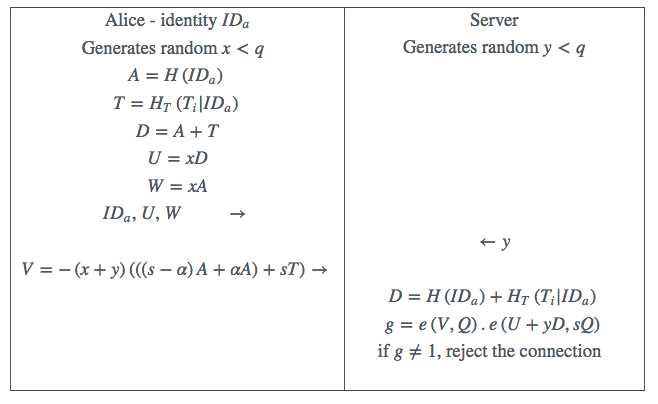

The M-Pin protocol needs a small modification to continue to support the
mechanism for determining PIN error. Since this error will be reflected in the
PIN-plus-token component and not in the Time Permit, the client must also send the
in the first pass of the protocol. Now the value of
the protocol is ,
is the PIN error. See Table 2.
It is appreciated that for widespread deployment the client side of this protocol might
even inside of a browser implemented on a low powered mobile device. On the
improving radically over the last few years, as has the processing power of mobile
Examining the client side of the M-Pin protocol we see that it requires two point multiplications
in , These point
can benefit from an efficient endomorphism that exists on BN curves, as described
by Gallant, Lambert and Vanstone . This makes them roughly twice as

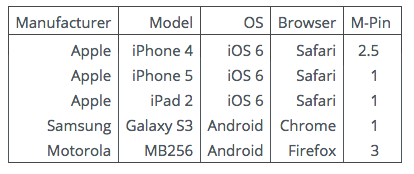

For lap-tops and desk-tops the client-side timings are imperceptible. Some timings
for mobile devices are shown in Table 3. On the server side, on contemporary
Intel processors, the processing time is of the order of a few milliseconds per
storage via keyword-searchable encryption. Cryptology ePrint Archive, Report
ICICS 2003, volume 2836 of Lecture Notes in Computer Science, pages 301–312.
order. In Selected Areas in Cryptology – SAC 2005, volume 3897 of Lecture Notes
in Computer Science, pages 319–331. Springer-Verlag, 2006.
identification and signature schemes. In Eurocrypt 2004, volume 3027 of Lecture
Notes in Computer Science, pages 268–286. Springer-Verlag, 2004.
SIAM Journal of Computing, 32(3):586–615, 2003.
In Asiacrypt 2001, volume 2248 of Lecture Notes in Computer Science, pages
514–532. Springer-Verlag, 2001.
groups. In PKC 2003, volume 2567 of Lecture Notes in Computer Science, pages
18–30. Springer-Verlag, 2003.
identification and signature problems. In Crypto 1986, volume 263 of Lecture Notes
in Computer Science, pages 186–194. Springer-Verlag, 1987.
curves. Journal of Cryptography, 23:224–280, 2010.
Discrete Applied Mathematics, 156:3113–3121, 2008.
elliptic curves with efficient endomorphism. In Crypto 2001, volume 2139 of Lecture
Notes in Computer Science, pages 190–200. Springer-Verlag, 2001.
their applications. In Eurocrypt 1996, volume 1040 of Lecture Notes in Computer
Science, pages 142–154. Springer-Verlag, 1997.
identification/signature. In PKC 2004, volume 2947 of Lecture Notes in Computer
Science, pages 125–143. Springer-Verlag, 2004.
of Computation, 32, 1978.
on elliptic curve. Cryptology ePrint Archive, Report 2003/054, 2003.
token and PIN number. Cryptology ePrint Archive, Report 2002/164, 2002.
Lecture Notes in Computer Science, pages 293–304. Springer-Verlag, 2005.
pairing-based systems. Discrete Applied Mathematics, 155:538–547, 2007.
channel. The Computer Journal, 55(4):475–486, 2012.
Communications Letters, 7:76–78, 2003.
